Difference Between Exhaust Dyeing And Pad Dyeing

In textile dyeing and finishing, dye application methods are mainly divided into two categories based on how the dye is applied to the fabric: exhaust dyeing (immersion dyeing) and pad dyeing (padding dyeing). These two processes differ significantly in principle, equipment, production mode, and suitable fabric types.

Understanding their differences helps mills select the right process to achieve better dyeing quality, efficiency, and cost control.

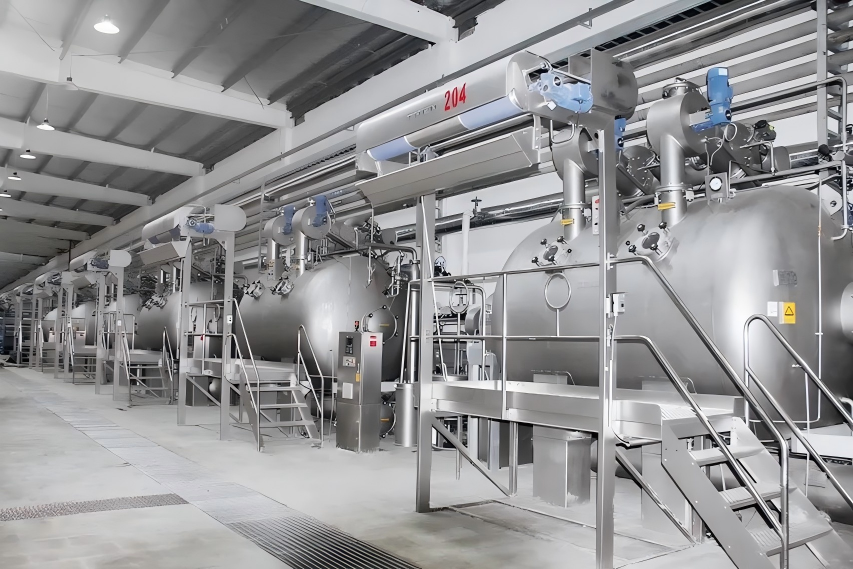

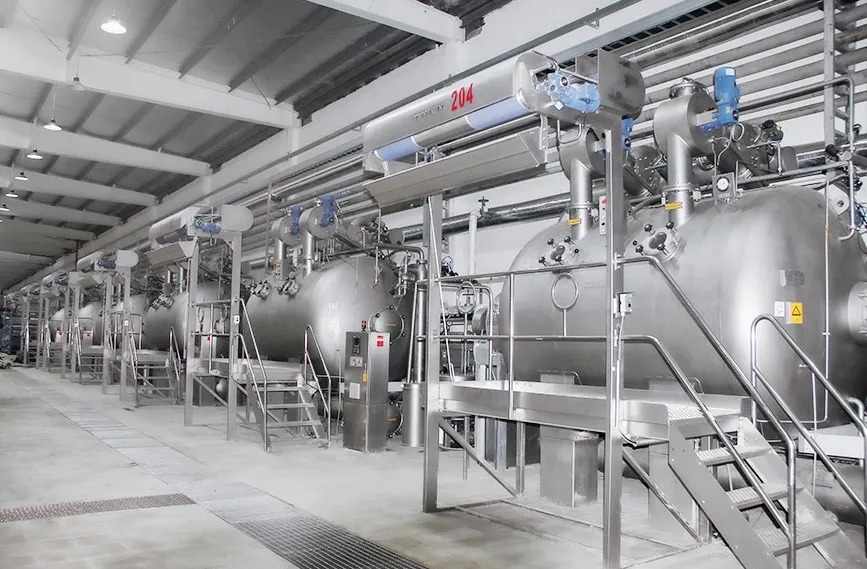

1. Exhaust Dyeing (Immersion Dyeing)

1.1 Definition

Exhaust dyeing is a process in which textiles such as fabric, yarn, or loose fibers are fully immersed in a dye bath. During continuous or intermittent movement in the dye liquor, dyes gradually migrate from the solution to the fiber surface and then diffuse into the fiber structure, where they are fixed.

In simple terms, the fabric is dyed by absorbing dye from a dye bath over time.

1.2 Process Characteristics

Exhaust dyeing is widely used due to its flexibility and relatively simple equipment requirements:

• Low equipment investment

• Easy operation and flexible processing

• Suitable for small batches and multiple varieties

• Commonly used for loose fibers, yarns, knits, and lightweight delicate fabrics

• Generally good levelness when process conditions are well controlled

However, it also has some limitations:

• Batch (discontinuous) process with lower productivity

• Higher water and energy consumption

• Greater wastewater load compared to continuous processes

Winch dyeing and jet dyeing are typical forms of exhaust dyeing. Winch dyeing usually offers better fabric smoothness and is suitable for delicate materials.

1.3 Key Parameter: Liquor Ratio

The liquor ratio refers to the ratio between the weight of the textile and the volume of dye liquor.

For example:
1 kg fabric : 20 L dye liquor → liquor ratio = 1:20

The liquor ratio significantly affects dyeing performance:

• Too low: poor circulation, uneven dyeing

• Too high: excessive water and energy consumption

To optimize dyeing results, mills often:

• Control temperature, time, and auxiliary chemicals properly

• Use low liquor ratio processes to improve efficiency

• Reuse residual dye liquor (re-dyeing systems) to reduce cost

Uniform temperature and concentration distribution in the dye bath is essential to ensure level dyeing.

1.4 Dye Concentration Expression

In exhaust dyeing, dye concentration is usually expressed as a percentage based on the weight of fiber or fabric:

% owf (on weight of fabric/fiber)

Example:

• 2% owf means 2 kg of dye per 100 kg of fabric

Calculation example:
Fabric weight = 20 kg, dye concentration = 2%
→ Dye amount = 20 × 2% = 0.4 kg

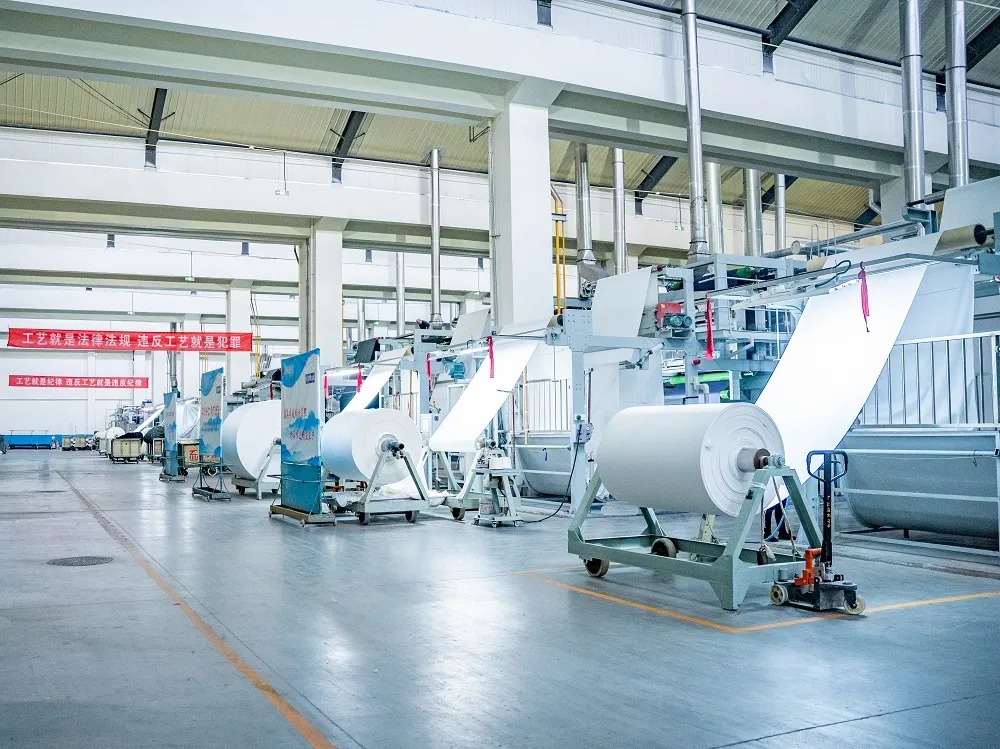

2. Pad Dyeing (Padding Dyeing)

2.1 Definition

Pad dyeing is a continuous process in which fabric is briefly immersed in a dye solution (usually a few seconds), then immediately passed through padding rollers to squeeze out excess liquor while ensuring uniform dye pickup. The dye is mechanically forced into the fabric structure.

Dye fixation is completed in subsequent processes such as:

• Steaming

• Thermofixation (baking)

In simple terms, pad dyeing is a “short dip + squeeze + fixation” continuous process.

2.2 Process Characteristics

Pad dyeing is a typical continuous production method with high efficiency:

• High production speed, suitable for large-scale manufacturing

• Continuous operation, ideal for woven fabrics

• High fabric tension during processing

• Requires precise control to avoid unevenness

It is commonly used for:

• Cotton fabrics

• Polyester and blends

• Woven fabrics such as denim and shirting materials

Limitations include:

• High requirement for machinery precision

• Risk of shade variation (left-center-right or front-back differences)

• Limited compatibility with certain dye types

2.3 Key Parameter: Pick-Up (Wetting Ratio)

The pick-up ratio (also called wet pickup) refers to the amount of dye liquor retained by the fabric after padding.

Formula:

Pick-up (%) = (Weight after padding − Dry weight) / Dry weight × 100%

Typical values:

• Cotton fabrics: ~70%

• Synthetic fibers: ~40%

High pick-up may lead to:

• Increased drying load

• Dye migration during drying

• Poor levelness or reduced fastness

2.4 Dye Concentration Expression

In pad dyeing, dye concentration is typically expressed in g/L (grams per liter), meaning the amount of dye per liter of solution.

Example:

• 10 g/L means 10 grams of dye per liter of dye liquor

This method allows precise control in continuous production systems.

2.5 Migration (Dye Migration)

Migration refers to the movement of dye from inside the fiber to the surface during the drying process as water evaporates.

This can cause:

• Uneven dye distribution

• Darker surface and lighter interior

• Reduced rubbing fastness

Common influencing factors:

• Excessive pick-up

• Slow drying rate

• Low affinity dyes

• Improper auxiliary selection

Control methods include:

• Optimizing pick-up ratio

• Using anti-migration agents

• Controlling drying curve

• Selecting appropriate dye systems

3. Key Differences Between Exhaust Dyeing and Pad Dyeing

4. Conclusion

Exhaust dyeing and pad dyeing are two fundamental and complementary dyeing methods in the textile industry:

• Exhaust dyeing focuses on gradual absorption of dye from a liquid bath and is suitable for flexible, small-batch production.

• Pad dyeing focuses on high-efficiency continuous processing and is widely used for large-scale woven fabric production.

In industrial applications, the choice between these two methods depends on fabric type, production volume, cost considerations, and final quality requirements.

A proper understanding of both processes is essential for optimizing dyeing performance and achieving consistent, high-quality results in textile manufacturing.
