Points to Note in Actual Production of SD-Type Cationic Dyes

SD-type cationic dyes are dyes specifically designed for particular fibers and processes. Their key characteristics are their "disperse" nature and relatively wide chemical mixing temperature range.

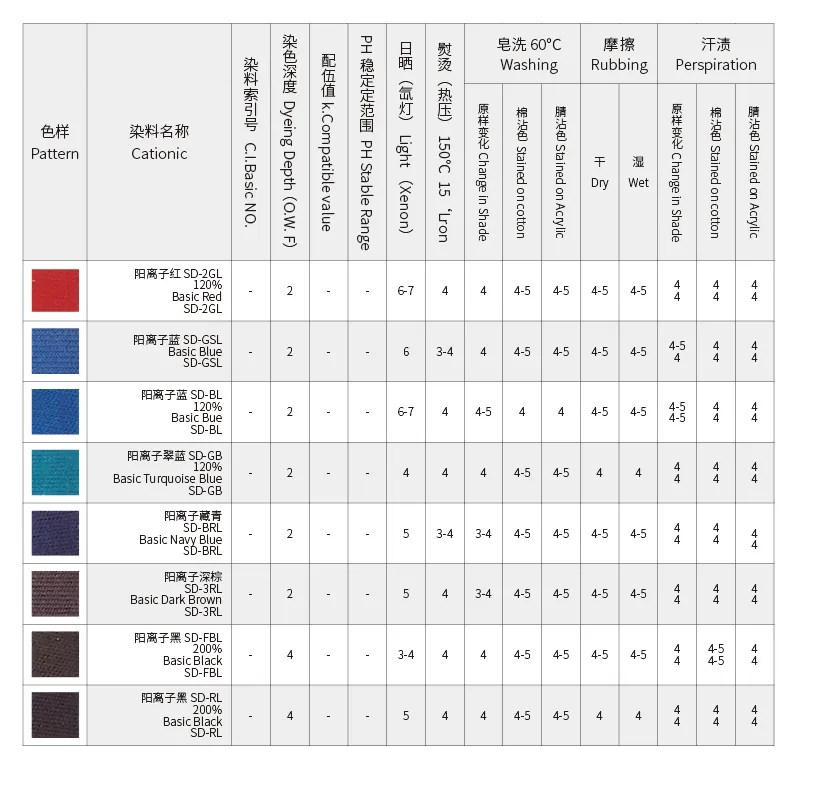

Dye Type and Characteristics

SD-type cationic dyes, also known as disperse cationic dyes, replace the anions in traditional cationic dyes with relatively large molecular weight aromatic sulfonic acid groups, resulting in near-zero solubility in water. They exist primarily in a dispersed suspension in the dye bath.

This special structure brings several outstanding advantages:

· Good leveling properties: The dye is evenly dispersed in the dye bath, preventing aggregation and contributing to a uniform color.

· High stability and wide pH range: Suitable for dye baths with pH values of 3-6, and insensitive to changes in the pH of the dye bath.

· Flexible application: Due to its dispersion stability, it can be used in the same bath as disperse dyes or acid dyes, making it ideal for one-bath dyeing of blended fabrics such as polyester/acrylic and wool/acrylic.

 Chemical Mixing and Dyeing Temperature

Regarding chemical mixing temperature, generally speaking, SD-type cationic dyes can usually be mixed in water at room temperature (e.g., 20-30°C). This is mainly due to their dispersible nature, which makes them less demanding in terms of water temperature.

SD-type cationic dyes are more stable than ordinary cationic dyes, but their "dispersible" nature means they are not suitable for mixing in boiling water. The specific effects and reasons are as follows:

Main Negative Impacts

1. Dye Aggregation and Precipitation (Most Likely Problem)                                                                                            • Reason: SD-type dyes rely on dispersants to maintain a stable suspension in water on the surface of the dye particles. Excessively high water temperatures (e.g., 100°C) may disrupt the stability of this dispersion system, causing the dispersant to become ineffective.

• Consequence: Dye particles will collide and aggregate, forming larger particles or flocculent precipitates. These aggregates are difficult to redisperse in subsequent dyeing processes.

2. Formation of Color Spots and Stains

• Reason: The dye aggregates formed above cannot pass smoothly through the filters of the dyeing machine or the gaps between fabric fibers during dyeing. • Consequences: These stains will adhere to the fabric, forming stubborn spots and blemishes, resulting in defective products or waste fabric. This is the most fatal impact.

3. Dye Hydrolysis or Degradation

• Cause: Prolonged exposure to high temperatures may cause some dye molecules to undergo hydrolysis or decomposition.

• Consequences: This leads to changes in dye color (dulling or discoloration) and a decrease in dyeing rate, resulting in color deviation and dye waste. Partially hydrolyzed dyes can also form spots and stains.

4. Uneven Chemical Mixing and Low Utilization

• Cause: Dyes clump together instantly upon exposure to high temperatures, making it impossible to disperse evenly.

• Consequences: The mixed solution itself is uneven, leading to uneven dyeing after being injected into the dyeing vat. Simultaneously, dye will settle at the bottom of the mixing tank, causing waste.

Recommended Mixing Temperature

Based on practical experience and dye characteristics, the correct mixing temperature is as follows:

• Recommended range: Room temperature ~ 40℃ warm water Best Practices: 1. **Paste Preparation:** In the dyeing tank, first mix the powdered SD dye with a small amount of room temperature water to form a uniform, particle-free paste. This step is crucial to prevent the dry powder from clumping upon direct contact with water.

2. **Dilution:** While continuously stirring, slowly add the specified amount of room temperature or slightly warm (<40℃) water to fully dilute and disperse the dye paste, forming a uniform suspension.

The specific dyeing temperature varies depending on the fiber and is critical: Modified polyester (CDP) requires 120℃ and high-temperature, high-pressure dyeing conditions. Acrylic fibers require around 100℃, which needs to reach and exceed the fiber's glass transition temperature (Tg) for the dye to diffuse fully into the fiber.

 **Usage Precautions:**

Dyeing Process: The heating rate and holding time during dyeing significantly affect the final dyeing effect (such as dye uptake and levelness). Refer to the supplier's recommended process curve based on the specific dye and fabric. Small-scale testing: Since the specific products, processes, and equipment you process are not under the control of the dye manufacturer, it is crucial to conduct small-scale testing before use to verify the feasibility of the process.
